Visual binning (interactive)

Overview

The b2w interface is built with Dash and provides an interactive environment for exploring read embeddings and constructing bins using lasso-based selection.

It allows you to:

  • explore structure in embeddings (UMAP, PCA, etc.)
  • colour reads by features
  • interactively select clusters
  • export bins

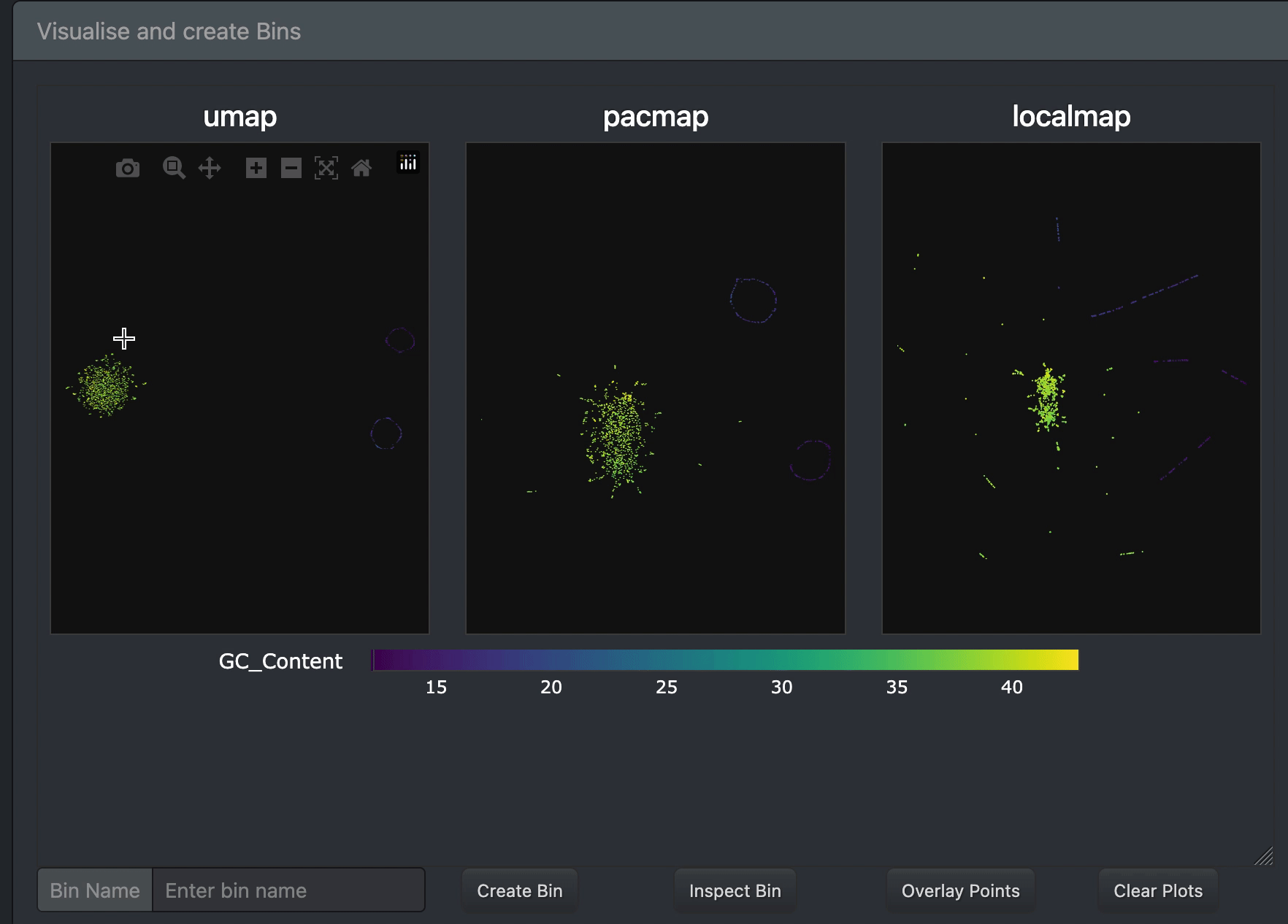

Create bin

Launching the interface

Start the app from the command line:

kmer-ord bin -d <database.sqlite> -o <output_dir>

Example:

kmer-ord bin -d results/kmerord.sqlite -o results/bins

Then open in your browser:

http://localhost:8050

Info

Looking for command-line options? See the CLI reference for kmer-ord bin.

Conceptual

Understanding the interface becomes much easier if you think in the following way:

  • Each point → a read
  • Coordinates → an embedding (UMAP, PCA, etc.)
  • Colour → a feature (numeric or categorical)
  • Lasso selection → a subset of reads
  • Bin → a saved selection (polygon + filters + embedding)

What is a bin?

A bin is defined by: - a polygon (lasso selection) - a coordinate system - active filters

Tip

  • Use multiple embeddings to validate clusters
  • Overlay is extremely powerful for detecting contamination and assess selected point across embeddings
  • Feature comparison often reveals hidden structure

Interface layout

Contains:

  • feature selection
  • filtering controls

Main panel

Contains:

  • embedding plots
  • binning controls
  • bin list and inspection tools

Step 1 — Explore embeddings

Start by visualising your data:

  1. Select one or more coordinate systems (e.g. UMAP, LocalMAP, PaCMAP, PCA)
  2. Choose a feature to colour by (e.g. GC-content)
  3. Click Update plots

This will generate and show the requested plots in the main panel. Inspect the structure in your data and identify candidate clusters.

Step 2 — Compare features

Switch to feature comparison mode to help understand what drives structure.

  1. Select a single embedding (for example UMAP)
  2. Select multiple features (GC-content, k-mer evenness, Tiara predictions...)
  3. Click Update plots

Now each panel shows the same embedding coloured differently.

Tip

Use feature comparison mode to identify features that separate clusters — this is often the key to meaningful binning.

Step 3 — Filter the data (optional)

Filters restrict which reads are shown and which reads can be selected.

You can:

  • set min/max values for numeric features
  • select categories for categorical features

Filters affect everything

Only filter when intended

Filters apply to: - visualisation - lasso selection - bin creation - export

Tip

Filtering may be useful for high-coverage datasets (e.g. selecting only reads > 10 kb).

Step 4 — Inspect a selection

Before committing to a bin, inspect the selected reads:

  1. Use the lasso tool (top-right of a plot)
  2. Draw a selection around a cluster
  3. Click Inspect Bin

A table will show all selected reads and their features.

This is useful for:

  • validating cluster purity
  • checking feature distributions

Step 5 — Create a bin

Define a bin by selecting a cluster:

  1. Use the lasso tool (top-right of a plot)
  2. Draw a selection around a cluster
  3. Enter a bin name
  4. Click Create Bin

The bin will appear in the Bin List.

Success

Your bin now stores: - embedding used - polygon (lasso shape) - active filters

Step 6 — Validate across embeddings

Use Overlay points to check consistency:

  1. Lasso a cluster in one embedding
  2. Click Overlay points

The same reads will be highlighted across all plots.

Tip

This is one of the most powerful features: - confirms cluster stability - reveals contamination - increases confidence in bins

Step 7 — Reset the view

Use Clear plots to:

  • remove overlays
  • restore the last plotted state

This does not delete bins.

Step 8 — Export bins

When ready, export all bins:

  • Click Export bins

For each bin, the following files are created:

  • <bin_name>.csv — table of reads and features
  • <bin_name>.fasta or .fastq — sequences

FASTQ is written when quality scores are available.

Common pitfalls

Warning

  • Only one lasso selection can be active at a time
  • You must click Update plots after changing inputs
  • Filters may unintentionally exclude reads
  • Clearing plots does not remove bins

Practical tips

  • Use feature comparison to identify meaningful splits
  • Avoid filtering unless intended
  • Use Overlay points to confirm clusters across embeddings
  • Inspect selections before creating bins

Summary

The typical workflow is:

  1. Explore embeddings
  2. Compare features
  3. (Optionally) filter
  4. Lasso clusters
  5. Inspect selections
  6. Validate with overlays
  7. Create bins
  8. Export results
